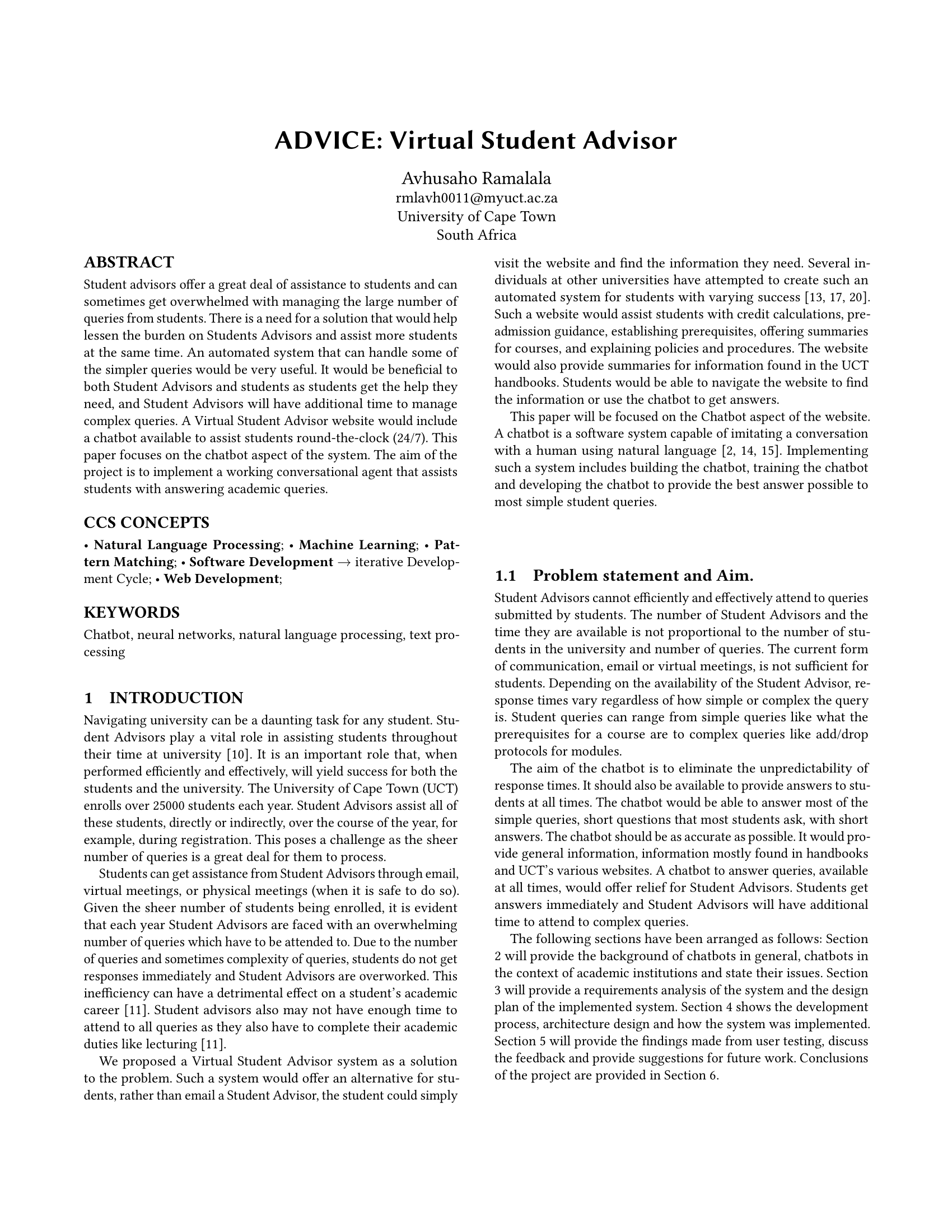

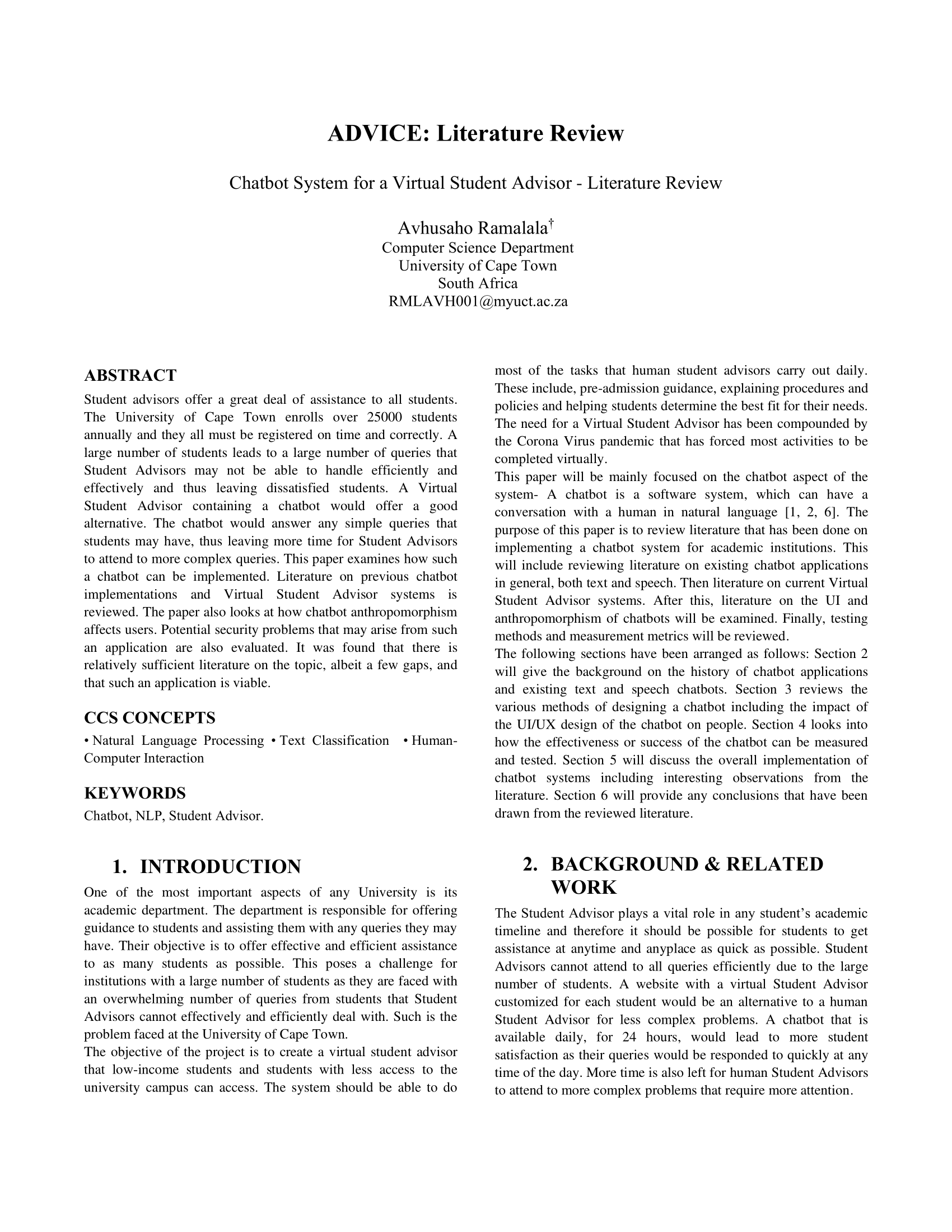

Navigating university can be a daunting task for any student. Student Advisors play a vital role in assisting students throughout their time at universit. It is an important role that, when performed efficiently and effectively, will yield success for both the students and the university. The University of Cape Town (UCT) enrolls over 25000 students each year. Student Advisors assist all of these students, directly or indirectly, over the course of the year, for example, during registration. This poses a challenge as the sheer number of queries is a great deal for them to process.

Students can get assistance from Student Advisors through email, virtual meetings, or physical meetings (when it is safe to do so). Given the sheer number of students being enrolled, it is evident that each year Student Advisors are faced with an overwhelming number of queries which have to be attended to. Due to the number of queries and sometimes complexity of queries, students do not get responses immediately and Student Advisors are overworked. This inefficiency can have a detrimental effect on a student’s academic career. Student advisors also may not have enough time to attend to all queries as they also have to complete their academic duties like lecturing.

We proposed a Virtual Student Advisor system as a solution to the problem. Such a system would offer an alternative for students, rather than email a Student Advisor, the student could simply visit the website and find the information they need. This page focuses on the Chatbot aspect of the website.

Student Advisors cannot efficiently and effectively attend to queries submitted by students. The number of Student Advisors and the time they are available is not proportional to the number of students in the university and number of queries. The current form of communication, email or virtual meetings, is not sufficient for students. Depending on the availability of the Student Advisor, response times vary regardless of how simple or complex the query is. Student queries can range from simple queries like what the prerequisites for a course are to complex queries like add/drop protocols for modules.

The aim of the chatbot is to eliminate the unpredictability of response times. It should also be available to provide answers to students at all times. The chatbot would be able to answer most of the simple queries, short questions that most students ask, with short answers. Thechatbot should beasaccurate aspossible. It would provide general information, information mostly found in handbooks and UCT’s various websites. A chatbot to answer queries, available at all times, would offer relief for Student Advisors. Students get answers immediately and Student Advisors will have additional time to attend to complex queries.

Main functionalities of the chatbot are providing answers to simple short queries, providing short explanations about courses, providing contact details for relevant staff or departments, providing links to websites, and storing previous chats.

The chatbot should be capable of various kinds of greetings and goodbyes. One of the aims of the chatbot is to be human-like, to a point. It should be able to respond to informal greetings and goodbyes. Each course has a short description in the handbooks. The chatbot should provide a short summary of all these descriptions. Messages should be short and concise. This information will be manually extracted from handbooks and inserted into the training data for the chatbot.

Each registered student will have a history of their chats stored on the database. Chats are stored in an array of strings as one of the attributes of the Users relation. Chats are stored prefixed with “usr_” or “bot_” to differentiate between input by the user and chatbot responses. These chats should be secured to ensure data privacy.

Non-Functional Requirements

• Quick response time. Users should get replies immediately, they should not have to wait, as they must with emails. Every response should take no more than 3 seconds. However, several factors should be considered, response time could be affected by speed of the internet or network coverage as well.
• Short responses. Users should not feel discouraged to read responses sent back by the chatbot. Ensuring that the responses are of reasonable length is imperative for how often users engage with the bot.
• Grammatical correctness. Text input by the user does not have to be spelled correctly or grammatically correct. The input also does not have to match sentences in the training data exactly in order for responses to be correct. The chatbot will use pattern matching (further described in the following section), so if the query has the expected keywords then a response will be generated.
• Reliability, maintainability, and availability. The bot will be available for users at all times (“24/7”). It may not be available when the website is undergoing maintenance or data is being updated. Maintaining the chatbot is a challenge because one must ensure that the dates and information the system uses are accurate and relevant to the current year. Where information is retrieved from sites, the link should be provided.

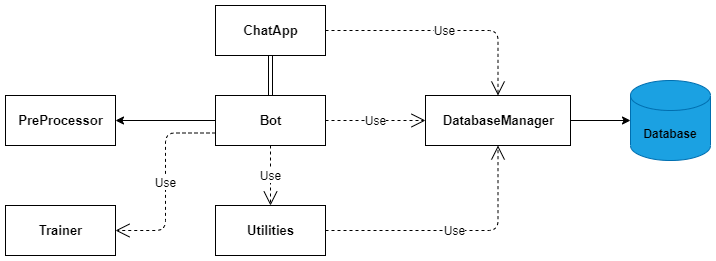

Class Diagram presenting architecture of the chatbot.

Architecture. The system follows a Model-View-Controller architecture. The class diagram in the figure above shows the objects that make up the chatbot system, back-end. The actual view of the system is what is displayed on the website UI, in this context, the view is the object that is responsible for accepting user input from the front end and returning responses, Chatbot. The Chatbot object is the Controller (in context of the website), it is only responsible for accepting texts and returning the response generated by the model to the front end.

The Bot, PreProcessor and Trainer objects make up the Model aspect of the system. information is passed to the Bot, which then uses the trained neural network model to generate a response. Pre- Processor cleans user input off punctuation marks or any acronyms or derived words. The Trainer object loads the trained neural network, processes the cleaned input, and provides a response that is then sent to the Chatbot object (Controller) to be sent to the view. DatabaseManager is responsible for any queries made to the database, either to save chats or get information.

The user is abstracted from the logic of the system. All information required by the view can be acquired through the controller. Each object has one responsibility. Trainer is only responsible for creating or loading the neural network for language processing. PreProcessor is only responsible for processing user input before it is passed to the neural network. Using a layered architecture makes the system more maintainable as changing one layer (i.e. View, Model or Controller) has less consequence over the whole system. For example, the view can be changed with little to no consequence to the model.

For implementation of the chatbot, several factors had to be considered when choosing the technologies to be used. The chatbot would have to access the database therefore the language must be efficient with databases. The chatbot would use Machine Learning so it would be beneficial to choose a language with good support,an established community and various libraries, for Natural Language Processing models. Python was chosen as the language to implement the chatbot. It is an established programming language with a large community and libraries. There are several libraries that have been created for Natural Language processing purposes. The main NLP libraries used in this project are NLTK, TFLearn, and NumPy. The Natural Language Toolkit (NLTK) provides libraries and programs for processing human language. NLTK also provides test data that can be used to test the chatbot. Another library used is TFLearn, a TensorFlow Deep Learning Library. TFLearn is an extension of the tensorflow framework, a software library for machine learning and artificial intelligence mostly used for implementing deep neural networks. TFLearn provides a higher-level Application Programming Interface (API) which makes is easier to use. These libraries make it easier to implement the neural network model that will be used to match a text to a pattern and provide the appropriate response. Python’s Flask will be used to build the chatbot into a web application with an endpoint that the main website can make POST requests to.

Training data is stored in JavaScript Object Notation (JSON) format. This provides an easy way to access the data. Python has a JSON library which provides an efficient and simple way of loading and processing a JSON document. JSON uses human-readable text to store and transmit data. This choice was also better so the document could be stored in the MongoDB database, a document database that uses JSON to represent data. The files are lightweight and thus make it efficient to load and process large amounts of data. This is favorable as the chatbot needs thousands of sentences to learn questions and the appropriate answers. Questions and answers are stored in a pattern-response format. Each pattern has a tag, e.g., “greetings”, “registrationForm”, “uctLocation”, etc. There are hundreds of tags and thousands of questions which the bot is trained on. The JSON file is arranged as follows:


									{
										"intents" : [
											{
												"tag" : "<intentName>" ,
												"patterns" : ["<questions_pattern>"] ,
												"responses" : [ "<responses_pattern>"]
											}
										]
									}

											JSON representation of the training data


MongoDB, a NoSQL database, was chosen to store information. A NoSQL database is preferred because data does not have to be strictly structured as in SQL, which makes it easier to store, update or query. It is highly efficient and enables easy updates to the schema design if the need arises.

Potential vulnerabilities of the development process are integration of the chatbot into the overall virtual student advisor website. Training the chatbot could take a really long time which would then affect the progress of the project. Changing requirements could also have affected the progress, however, an agile approach made it possible to adjust to those changing requirements.

Classes

• ChatApp: the controller class that connects with the View and Model. However, relative to this paper ChatApp also behaves as the display. Information which would be sent to the View is displayed on terminal. The ChatApp object accepts user input passed in from the View (Website User Interface). It sends the input to the Model and receives a response back. The response would then be passed on to the View to be displayed to the user. The main behaviour of the ChatApp class is to display the previous chats and the current chats. It also uses functions of the DatabaseManager class to get previous chats to be displayed and to save chats of the current session.
• Bot: uses the trained model to create a response for a sentence using the saved neural network model. The saved model is fetched from memory when a chat session is started.
• PreProcessor: responsible for processing training data before it is used to train the model. Processing the training data refers to removing trailing spaces, removing some punctuation like question marks, replacing words with their root/stem words, and replacing any acronyms with the complete words. This helps with removing any inconsistencies in sentences, it also makes it easier for the model to recognize patterns and match user input to appropriate responses.
• Trainer: uses the TFLearn library to initialize the deep neural network, with its hidden layers and output layer. The hidden layer is tested with different number of neurons and batch sizes to see which yields the best results.
• DatabaseManager: Responsible for establishing a connection with the database and querying the database for academic information or previous chats.

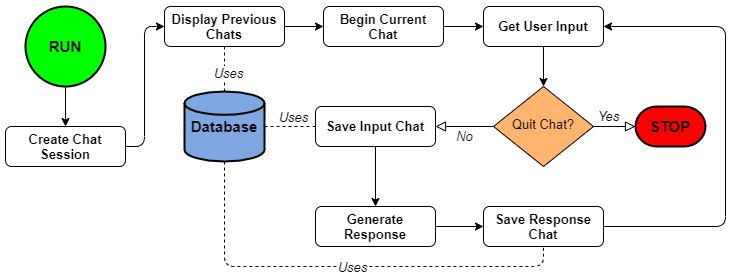

Flow chart showing the processes of the chatbot system.

The Figure above shows the flow of the program. When a user opens the program, a new chat session is started (Appendix A.2). The previous chats are fetched from the database and displayed for the user to see. Previous chats can only be fetched if the user is registered, else the chats are not saved at all. The user can begin with the current chat session. The user gets a response after each entry. Inputs and responses are saved immediately, this ensures that if the program is unexpectedly stopped the chat history will still be available. If the user wants to end the chat session then the user enters “quit”. This is for the terminal version. On the website the user would simply cancel the chat window or bubble.

Integration

The goal of the chatbot is to be used in website therefore it has to be integrated into the website. For the front-end to be able use the chatbot, POST requests are sent to the chatbot endpoint (see figure Code snippet of how POST requests are processed and what is returned.) using a unique Unified Resource Allocator (URL). The chatbot app was deployed on Heroku which then generated a unique URL, https://advicechatapp.herokuapp.com/chat that can be made to the chatbot. The URL accepts a student number, if there is one, and the user input in JSON format and returns the generated response together with the student number in JSON format. Requests are transported over a secure communication (Hypertext Transfer Protocol Secure- HTTPS) which offers more data protection compared to regular Hypertext Transfer Protocol (HTTP).

Testing

The chatbot was tested together with the virtual student advisor website by users, students and student advisors. users were asked to give feedback on the appearance, quality of responses and ease of use of the system. The system was also tested for average response time of each user input. As this is a chatbot meant for people, whether or not time was satisfactory was dependant upon each individual. The Python time library was used in automated testing as it yields more accuracy compared to a person with a timer. The chatbot was also tested for accuracy with unseen questions.
Users completed the tasks and filled in the Google form or answered questions based on the experience. The tasks and questions that people had to complete are listed under the Findings section along with the results.

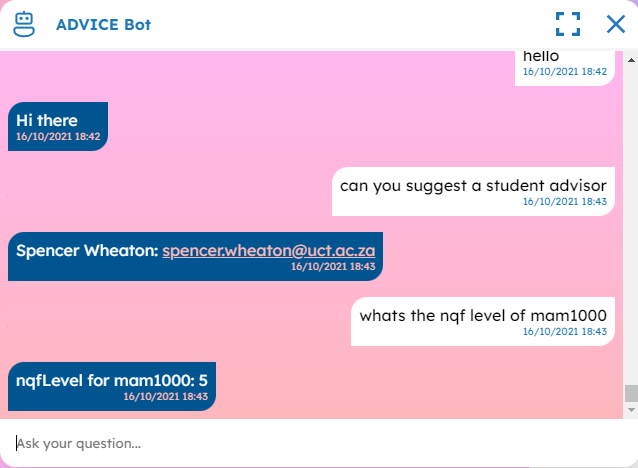

Example of the working chatbot system on the site.

Above is a screenshot of the working chatbot on the website. Each chat is displayed with a timestamp to assist users in recalling when texts were exchanged. To fetch chat history from the database, MongoDB is queried to search for the user’s chats using the student number as the unique key. The query is shown in Figure Example of query made to the Mongo database.

User testing and automated testing yielded a variety of interesting results. The User Interface design of the chat bubble was successful as users could easily identify the chatbot icon and were able to use it. It is worth noting that making the icon bigger could improve the experience as more users would be drawn to it and utilize its functionalities. The chatbot’s response time was excellent. All users were satisfied with the speed at which the chatbot responded. Previous chats for signed-in users were stored successfully whilst chats of users not signed in were not stored, as expected. Users found the chatbot to be useful however still had much room for improvement in terms of answering a wide range of queries. The range of queries that can be answered improves with increase in user testing as more information is gained in terms of what users want to know.

With a few more iterations and improvements this chatbot could be a very effective feature of the virtual student advisor website. Users would be able to ask any question and get instant responses rather than searching for the information throughout the site. Relative to the site, the chatbot could also be a navigation tool of where to find information or sections of a site. The chatbot has great potential, not only within the site, but also as a stand-alone application that students can use. The application could have a mobile version which would further simplify interaction with the chatbot, especially for students. Use of the chatbot could significantly decrease the number of queries Student Advisors receive and thus give them additional time for complex queries.

A chatbot is an automated conversational agent that can be utilized to assist users instantly. In the beginning we identified that student advisors are faced with the burden of responding to too many queries and students do not get responses immediately. The project aimed to develop a conversational agent capable of immediately responding to simple student queries about academics and potentially university as a whole. The developed chatbot was successful in responding to simple queries about academics effectively and efficiently. The chatbot could not effectively respond to random queries about university as a whole and thus needs much improvement in this area. It can best be used for simple frequently asked queries. Using the chatbot as per the suggestions would also greatly improve the experience. Testing showed that the chatbot was relatively successful. However, it is still in need of much improvement.

Suggestions for the future would be to split such a project into two sections, a data gathering section and an agent development section. This would allow for more time to be spent on each section and thus yield better results. User testing should also be replicated multiple times as it provides quality and actionable feedback. More research on previous implementations of chatbots and how to optimize them would also improve it. Also develop a User Interface that would make it easy for administrators or Student Advisors to input requirements that have changed from previous years. Extend the system to work for other faculties, departments at UCT and potentially other universities.
